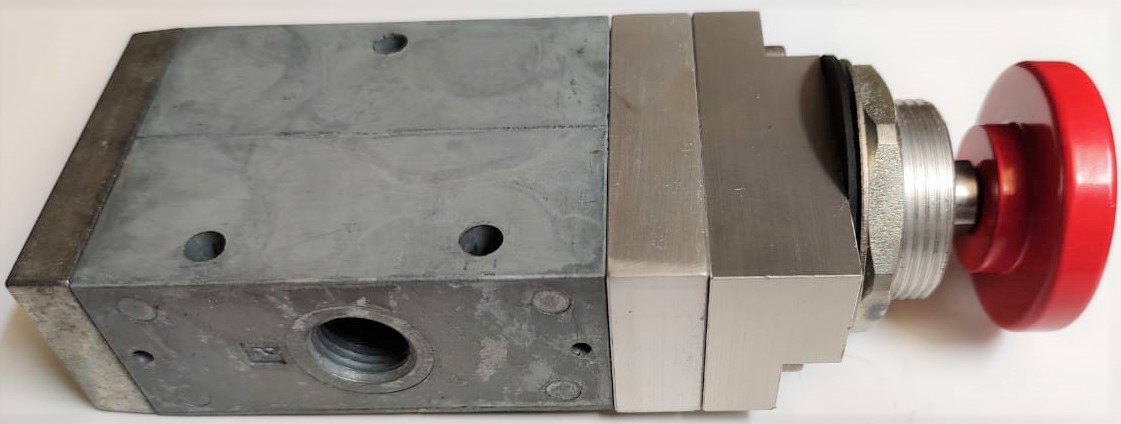

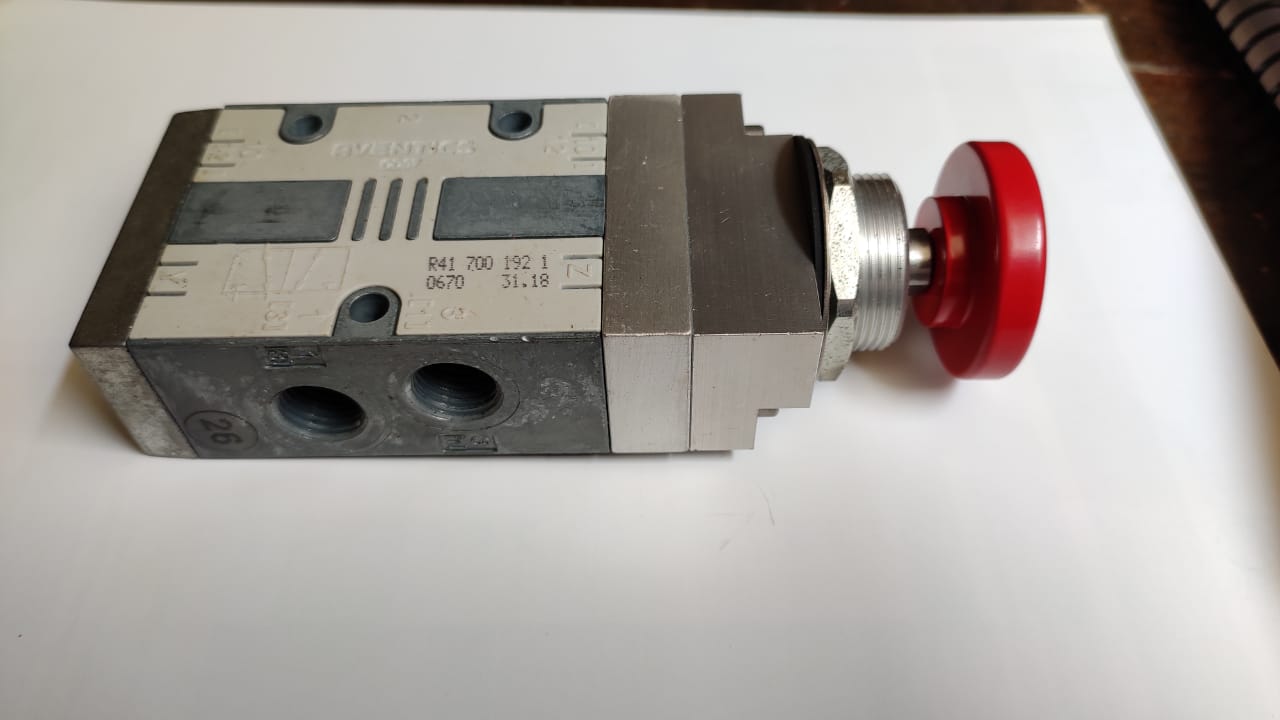

R417001921 3/2 pneumatic valve

Model/Part Number: R417001921
Manufacturer: Aventics GmbH
Function: 3/2-way pneumatic valve, manual push button (red), maintained position
Nominal Width: NW7
Flow Rate: 1200 NL/min
Operating Pressure: 0-10 bar
Minimum Control Pressure: 3 bar
Connection Threads: M14x1.5 (ports 1, 2, 3), M10x1 (control port 10)
Operating Temperature Range: –25°C to +80°C
Medium: Compressed air (meeting ISO standards)
Protection: IP40
Operating Force: 50N
Weight: 0.65 kg
